Professional Steam Generators for commercial hammams and spa facilities. Designed and manufactured in Russia.
Waimag
40  °C
Power
for any room size
Automatic
Ventilation Control
Automatic
Flushing
& Cleaning
Commercial-grade reliability backed by a 3-year warranty
Made in Russia.
Designed for demanding operating conditions
Russian-made Waimag steam generators are engineered for continuous commercial operation. The intelligent control system runs to a weekly schedule, while our own local manufacturing ensures competitive factory-direct pricing with no middlemen. Enjoy independence from parallel imports and reliable access to spare parts, with essential components consistently kept in stock.

Designed for Uninterrupted Operation

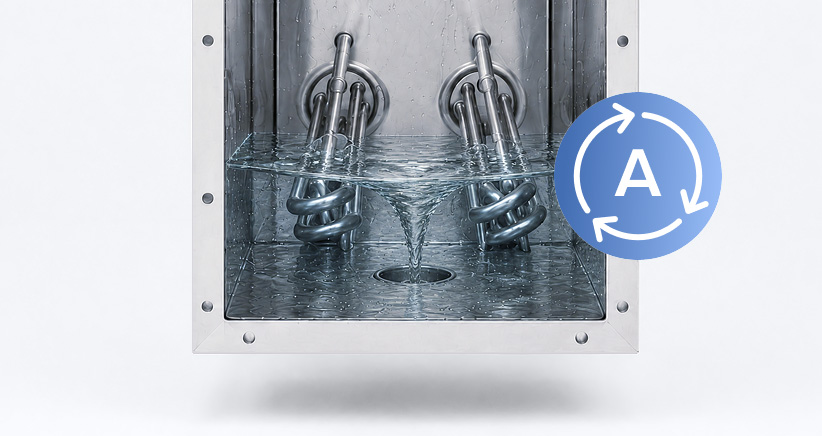

Automatic Flushing

Automatic Flushing

The system automatically flushes the tank during operation and performs a thorough clean at the end of each shift. The sloped tank base ensures complete drainage, while larger internal connections help prevent scale build-up and blockages.

Easy Maintenance

Easy Maintenance

The bayonet-mounted casing and removable panels provide quick access to internal components, making servicing and heating element replacement straightforward. A qualified electrician can replace the heating elements in just minutes. The unit is designed for servicing and repairs without having to remove it from the wall.

Disassembles with a single touch

Keeps its clean, premium look even in the toughest conditions.

Housed in its own isolated chamber, protected from boiling water, foam and scale — this prevents false triggers and keeps the heating elements safe from dry running.

The control panel can be mounted in up to three positions on the housing using magnets, or installed separately on a wall.

The tank can be removed easily for straightforward servicing and descaling.

Automatically supplies water to the tank when commanded by the control system.

Allow the steam generator to be filled or drained manually without connecting the control panel.

Developed in-house, it supports the Modbus protocol and directly controls ventilation, lighting and aromatherapy systems.

Used to control the heating elements and ensure stable, reliable heating performance.

Provide secure, reliable wiring connections in demanding operating environments.

Keep power and low-voltage wiring separate, reducing electrical interference and simplifying installation.

Threaded connections and low-mounted positioning make removal easy and ensure efficient operation.

Located next to the terminal box for quick and straightforward installation.

Automation
and Remote Control

Scheduled Operation

Scheduled Operation

Simply set the schedule once for the entire week. The system automatically switches on according to the schedule and starts the flushing cycle after the hammam closes.

Remote Access & Modbus

Remote Access & Modbus

Integrates with the building automation system. Turn the hammam on remotely with a single button or start it automatically according to a schedule.

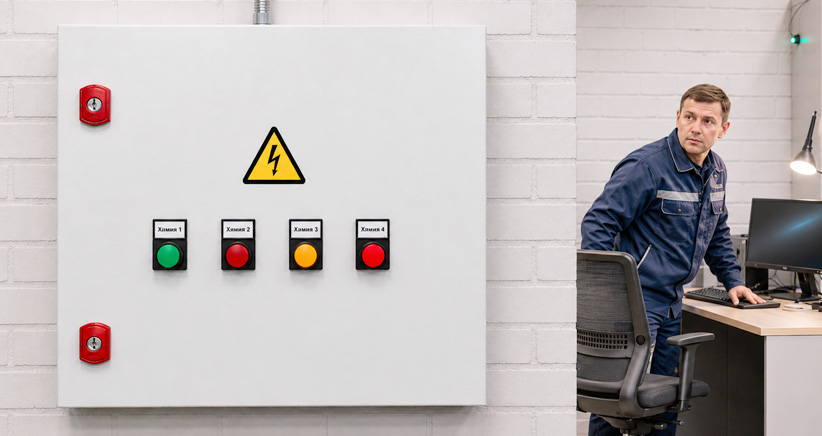

Instant Alerts

Instant Alerts

In the event of an unexpected situation, a warning light comes on immediately in the duty engineer’s room, helping prevent serious equipment failures.

How
our steam generator works

  • Extracts stale air and lowers the temperature, allowing the steam generator to supply steam efficiently.

  • Provides a steady supply of fresh air to the hammam. It can be installed separately, but for better performance, it can be integrated directly into the Fog Maker.

  • The steam generator should be connected through a dedicated circuit breaker rated for the required load and a 30 mA residual-current device.

  • Installed 1.5–1.7 metres above the floor, approximately at seated head height, away from the steam outlet and entrance door.

  • Can be mounted on the wall or attached to the steam generator housing using built-in magnets.

  • The hammam’s main lighting can be connected to the steam generator and controlled from the control panel. Maximum load: 120 W. Due to the 100% humidity in a hammam, lighting voltage must not exceed 24 V. Always use a suitable step-down power supply rated for the type of light fitting.

  • An ideal option for adding aromatherapy to the hammam. The pump connects to the steam generator and is configured via the Waimag control panel. Up to four additional devices can be connected to a single steam generator.

  • A steam nozzle that mixes steam from the steam line with cool air from the fan, producing a dense, white mist at the outlet.

  • The steam generator is connected to the water supply using a 3/4″ flexible hose.

  • Allows the steam generator to be integrated into a smart home or building automation system and controlled via Modbus.

Guest Safety
& Vandal-Resistant Design

Vandal-Resistant Protection

Vandal-Resistant Protection

The main control panel is concealed in a dedicated technical room. An optional protected sensor in the steam room is fully isolated from accidental or intentional water exposure.

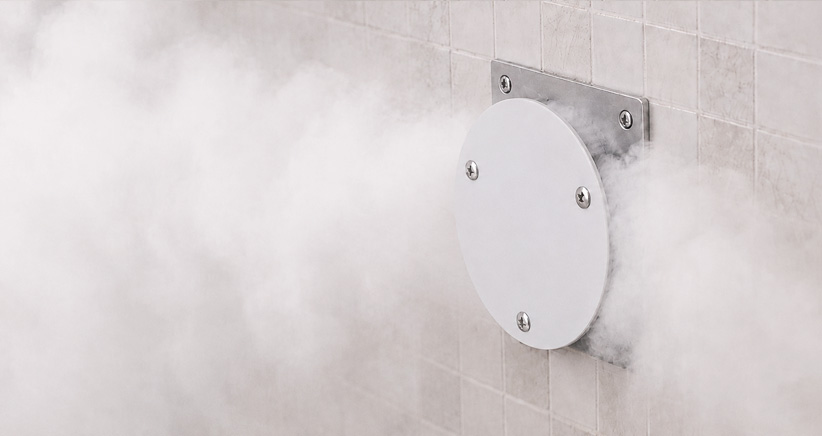

Safe Steam

Safe Steam

The large-diameter steam pipe and specially designed steam nozzles eliminate the risk of guests being scalded by hot steam.
Healthy Air Quality

Healthy Air Quality

Synchronised operation of the supply and exhaust fans ensures a constant flow of dense steam without creating a stuffy atmosphere. Fresh air is continuously maintained in the hammam.

Solid Legal
& Service Guarantees

Made in Russia — Independent Supply Chain

Made in Russia — Independent Supply Chain

No reliance on sanctions-sensitive supply routes or parallel imports. All control boards, heating elements and sensors are kept in stock, ensuring reliable access to spare parts without months of waiting.
Complete Documentation

Complete Documentation

A full documentation package for inspections and commissioning, including certificates and declarations of conformity. Detailed technical drawings and installation manuals are provided. We support both cash and bank-transfer payments and provide all required accounting and closing documents.
24/7 Support from the Manufacturer

24/7 Support from the Manufacturer

Round-the-clock engineering support from the people who designed and built the equipment. In-warranty on-site service within 3 hours in Moscow and the Moscow Region.

Synchronous Operation
of Multiple Steam Generators

When a single steam generator does not provide sufficient capacity, multiple units can operate synchronously as one system, controlled from a single control panel or remote switch.

The slave steam generator can operate with or without its own temperature sensor. If no temperature sensor is installed on the slave unit, it is controlled by the master steam generator.

The slave steam generator is controlled by closing its remote switch via one of the optional outputs on the master unit. This output must be configured as a “Run” signal. Please note: a control panel is required for configuration.

Suitable for Russian Banya
(Humid Sauna)

The Waimag steam generator can operate as a slave unit, rather than relying exclusively on its own control panel. This makes it suitable for use in humid sauna systems as an alternative to the HygroMatik StandardLine.

Technical Specifications

Waimag steam generator dimensions
Model CP06 CP09 CP12 CP15
Power, kW 6 9 12 15
Steam Output, kg/h 8 12 16 20
Water Consumption, L/h 8 12 16 20
Recommended Room Volume, m³ up to 10 9–16 12–19 15–26*
Power Supply 3 × 380 V or 1 × 230 V 3 × 380 V
Current at 380 V, A 9 13.5 18 22.5
Current at 230 V, A 27 40.5 — —
Circuit Breaker, 380 V, A 3 × 10 3 × 16 3 × 20 3 × 25
Circuit Breaker, 230 V, A 1 × 32 1 × 40 — —
Power Cable, 380 V, mm² 5 × 1.5 5 × 2.5 5 × 4 5 × 6
Power Cable, 230 V, mm² 3 × 10 3 × 16 — —
Steam Pipe Diameter 1″ (25 mm)
Drain Diameter 1″ (25 mm)
Weight, Dry / Filled 24 / 32.5 kg
Water Tank Capacity 8.5 L
Control Panel Power Supply 24 V
Communication Interface 2 RS485
Motorised Drain Valve
PTFE Tape
1″ Steam Pipe Tee
Steam Pipe Tee Plug
Drain Valve Nipple
Control Panel

Everything You Need Is Included

3 mm Hex Key
Water Hardness Test Kit
Control Panel Cable
Temperature Sensor
Wall-Mounting Hardware Kit
Wall-Mounting Bracket

Complete Control at Your Fingertips

Touchscreen control panel with an intuitive interface. Save your settings and control the lighting, ventilation and aromatherapy directly from the panel.
13:00
45 °C
50°C
05:45
Temperature
− 45  °C+
Session time
03
:
00
LightingOn
A. LightingOn
B. AromaOn
C. Supply fanOn
D. Exhaust fanOn
Temperature
− 45  °C+
Session time
03
:
00
LightingOn
A. LightingOn
B. AromaOn
C. Supply fanOn
D. Exhaust fanOn
Weekly Timer
Settings
Monday
Temperature
− 45  °C+
Session time
03
:
00
AromaOff
Supply fanOff
Session start
12
:
00
Exhaust fanOff
LightingOff
Errors
Error 11 Tank filling timeout
14.08.2026 12:32:14
Maintenance
Remind me to clean after:
− 0+
Hours
ReminderOff
Explore the interface: the controls are interactive.

Buy a Waimag Steam Generator

Choose your hammam size — we’ll recommend the right steam generator
Hammam size
Recommended models:

Add More & Save with a Bundle

Control Panel

The central control system for your hammam.
Included with the steam generator

Temperature Sensor

Monitors the temperature inside the hammam.
Included with the steam generator

Vandal-Resistant Sensor

Designed for commercial and public hammams.
Included with the steam generator

Steam Nozzle «Classic»

Safe steam outlet for the hammam.
37 085 ₽ 39 037 ₽
You save 1 952 ₽

Steam Nozzle «Round»

Smooth, rounded design.
37 085 ₽ 39 037 ₽
You save 1 952 ₽

Steam Nozzle «Square»

Clean, geometric design.
37 085 ₽ 39 037 ₽
You save 1 952 ₽

Fog Maker

Create a striking steam effect.
69 255 ₽ 72 900 ₽
You save 3 645 ₽

Supply Fan

Keeps fresh air circulating throughout the hammam.
19 306 ₽ 20 322 ₽
You save 1 016 ₽

Exhaust Fan

Less dampness — more steam.
19 306 ₽ 20 322 ₽
You save 1 016 ₽

Aroma Pump

Automates the aromatherapy system.
27 925 ₽ 29 395 ₽
You save 1 470 ₽

Hammam Fragrance

Eucalyptus with mint, 5 L.
16 415 ₽ 17 278 ₽
You save 863 ₽
Your Configuration
Total:0
You save:0
Your order has been sent!
Our manager will contact you shortly.
Total
0

Official Dealers

Frequently Asked Questions

Waimag delivers a consistent supply of steam, precise temperature control and reliable performance under continuous operation. The system is also designed for minimal maintenance and demanding commercial environments.

Waimag steam generators are suitable for private hammams, spas, fitness centres, hotels and other facilities with regular or heavy usage.

The design provides quick access to the main components, making routine servicing straightforward. Maintenance is limited to regular cleaning and inspection of consumable components, with no complicated procedures required.

The required capacity depends on the room volume, interior finish materials, ceiling height, ventilation and heat loss. Waimag specialists can help calculate the appropriate specifications for your specific project.

The housing and key components are made from corrosion and heat-resistant stainless steel, helping to ensure long service life and reliable operation.

Yes. Waimag steam generators are designed for intensive use and are suitable for commercial facilities with high visitor traffic.

The system includes overheat protection, water-level monitoring, automatic shutdown in the event of a malfunction, and pressure sensors to ensure safe operation.

This website uses cookies. By continuing to use the site, you agree to the use of cookies.

Automatic Flushing

The steam generator tank is fully drained during operation every 4 hours. The control panel allows you to adjust the interval between drain cycles, with a minimum interval of 1 hour. Automatic draining can also be disabled by setting the interval to 0 hours.

One hour after the steam generator is switched off, the automatic draining and flushing cycle starts. First, the used water is drained from the tank. The tank is then filled and drained twice to remove sediment. Finally, the system is flushed with fresh running water while the drain valve remains open.

The bottom of the steam generator tank is sloped towards the drain outlet, ensuring complete drainage. This prevents water from standing in the tank and reduces limescale build-up on the bottom. The large diameter drain outlet allows even larger pieces of scale to be flushed out effectively.

All internal connections where limescale could accumulate are designed with an increased diameter, helping to prevent scale build-up and blockages.

Control Panel

The Control Panel gives you full control over the hammam — from temperature and session duration to advanced system settings. Switch the lights on and control additional equipment, such as the Aroma Pump and ventilation. Set up a weekly operating schedule.

The Control Panel can be attached magnetically to the steam generator housing or neatly wall-mounted.

When multiple steam generators operate synchronously and supply steam to the same room, only one Control Panel is required.

Temperature Sensor

The Temperature Sensor sends temperature readings to the steam generator and is an essential part of the hammam system. Choose between the standard version and the protected Vandal-Resistant Sensor.

Install the sensor inside the hammam at a height of 1.5–1.7 m above the floor.

When multiple steam generators operate synchronously and supply steam to the same room, only one Temperature Sensor is required.

Vandal-Resistant Sensor

The standard Temperature Sensor has one drawback: once installed, it looks a little like a button. “There’s the steam button!” a visitor might think — and press it, potentially damaging the control system.

For public hammams, we therefore recommend the Vandal-Resistant Sensor. It is fully protected against external impact while maintaining highly accurate temperature measurements.

Steam Nozzle «Classic»

The classic nozzle design provides an even and safe supply of steam from the steam pipe into the hammam.

Can be installed vertically or horizontally. Made from polycarbonate and tempered glass.

Dimensions: 280 × 180 × 55 mm

Steam Nozzle «Round»

Provides an even and safe supply of steam from the steam pipe into the hammam. Made from polycarbonate and tempered glass.

Dimensions: Ø220 × 55 mm

Steam Nozzle «Square»

Provides an even and safe supply of steam from the steam pipe into the hammam. Made from polycarbonate and tempered glass.

Dimensions: 180 × 180 × 55 mm

Fog Maker

Steam is naturally colourless. To appear white, it needs to begin condensing. The Fog Maker combines steam from the steam pipe with cool air from the supply fan. At the nozzle, this creates a dense white mist rather than ordinary steam.

A hammam equipped with a Fog Maker creates a much more impressive visual effect than a conventional hammam.

Supply Fan sold separately.

Aroma Pump

The Aroma Pump connects to the steam generator. The control panel allows you to set how long the pump dispenses the fragrance and the interval between doses.

The pump accurately doses the required amount of fragrance, transferring it from the fragrance container into the steam generator’s steam pipe.

The pump must be installed in a way that prevents the fragrance from flowing back into the steam generator tank.

Hammam Fragrance

For hammam aromatherapy, we recommend the Brume de Hammam range by French manufacturer Camylle.

These fragrances are milk-based, allowing the formula to dissolve completely in water. They are ready to use and require no dilution.

The price shown is for the most popular fragrance — Eucalyptus & Mint in a 5-litre container. You can also choose from 20 other fragrances. Four pack sizes are available: 250 ml, 500 ml, 1 L and 5 L.

With every purchase of a 5 L Camylle fragrance, we include a convenient holder for the container.

Supply Fan

The Waimag steam generator can control the supply fan automatically. Whenever steam is supplied to the hammam, the supply fan switches on at the same time, ensuring a continuous supply of both steam and fresh air.

The Supply Fan can be installed on its own, but it is far more effective when used together with the Fog Maker. In this configuration, it serves two purposes: supplying fresh air and condensing the steam to create a denser mist.

The fan is fully protected against moisture and dust to IP68. Its motor and circuit board are encapsulated in a special compound, protecting the unit from condensation and direct water exposure.

Exhaust Fan

The Waimag steam generator can control the exhaust fan automatically. The fan switches on when the temperature in the hammam reaches the set maximum, removing excess humidity and stale air while lowering the temperature.

Once the temperature drops to the set level, the exhaust fan switches off, and the steam generator and supply fan switch back on. This ensures a regular supply of steam for visitors.

The exhaust fan can also be configured to ventilate the hammam after use.

The fan is installed in the ceiling within the ventilation duct. It is fully protected against moisture and dust to IP68. Its motor and circuit board are encapsulated in a special compound, protecting the unit from condensation and direct water exposure.

Cleaning Agent

The cleaning agent container connects to the steam generator tank.

Based on the operating hours counter, the unit automatically pumps the agent from the container, dissolves limescale and flushes the tank outside working hours.

Buy a Waimag Steam Generator

Choose your hammam size — we’ll recommend the right steam generator
Hammam size
Recommended models:

Add More & Save with a Bundle

Control Panel

The central control system for your hammam.
Included with the steam generator

Temperature Sensor

Monitors the temperature inside the hammam.
Included with the steam generator

Vandal-Resistant Sensor

Designed for commercial and public hammams.
Included with the steam generator

Steam Nozzle «Classic»

Safe steam outlet for the hammam.
37 085 ₽ 39 037 ₽
You save 1 952 ₽

Steam Nozzle «Round»

Smooth, rounded design.
37 085 ₽ 39 037 ₽
You save 1 952 ₽

Steam Nozzle «Square»

Clean, geometric design.
37 085 ₽ 39 037 ₽
You save 1 952 ₽

Fog Maker

Create a striking steam effect.
69 255 ₽ 72 900 ₽
You save 3 645 ₽

Supply Fan

Keeps fresh air circulating throughout the hammam.
19 306 ₽ 20 322 ₽
You save 1 016 ₽

Exhaust Fan

Less dampness — more steam.
19 306 ₽ 20 322 ₽
You save 1 016 ₽

Aroma Pump

Automates the aromatherapy system.
27 925 ₽ 29 395 ₽
You save 1 470 ₽

Hammam Fragrance

Eucalyptus with mint, 5 L.
16 415 ₽ 17 278 ₽
You save 863 ₽
Your Configuration
Total:0
You save:0
Your order has been sent!
Our manager will contact you shortly.
Total
0
